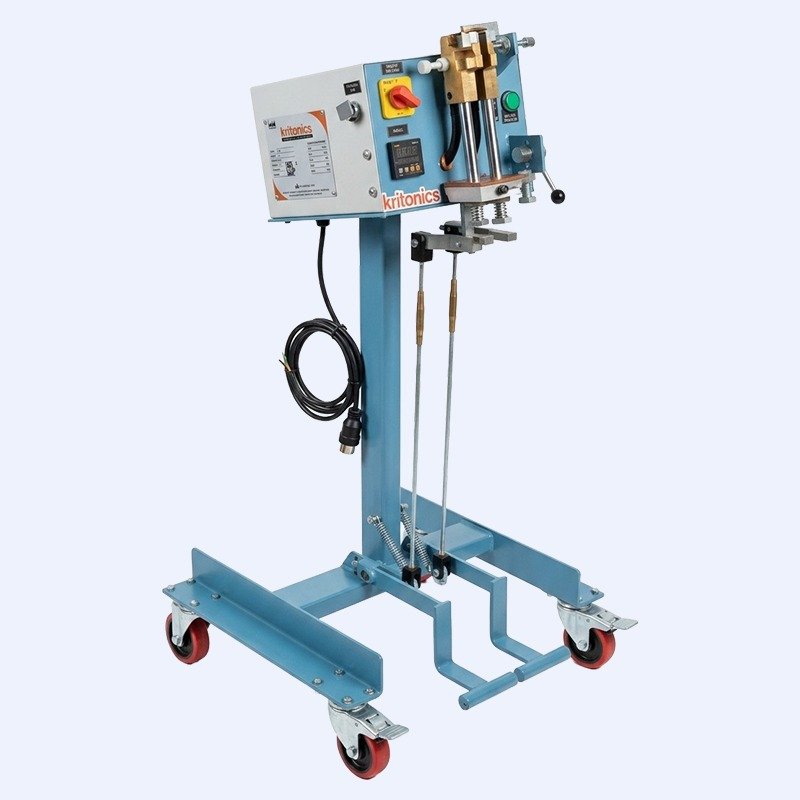

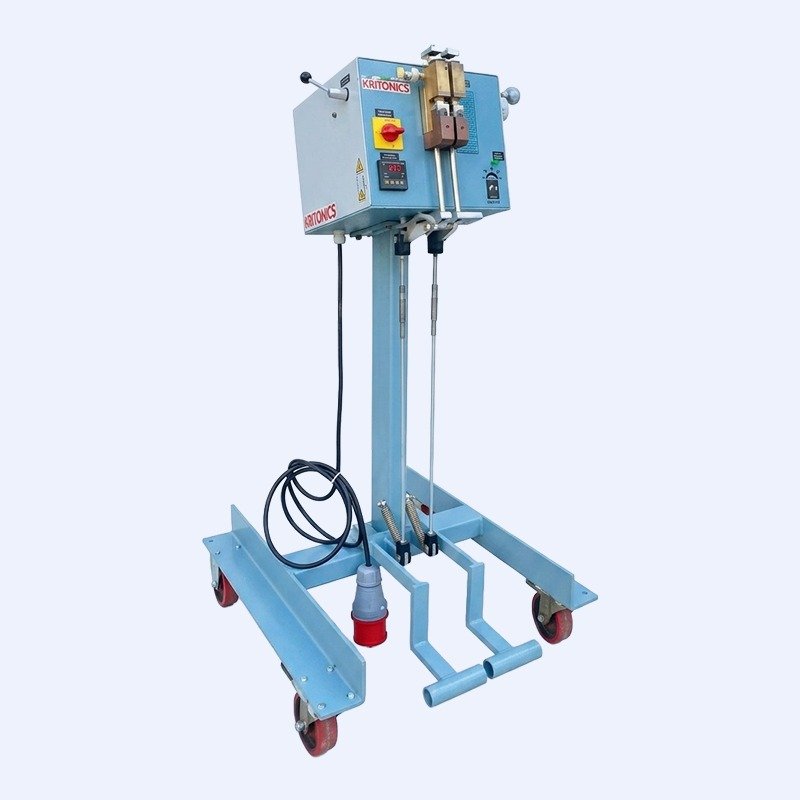

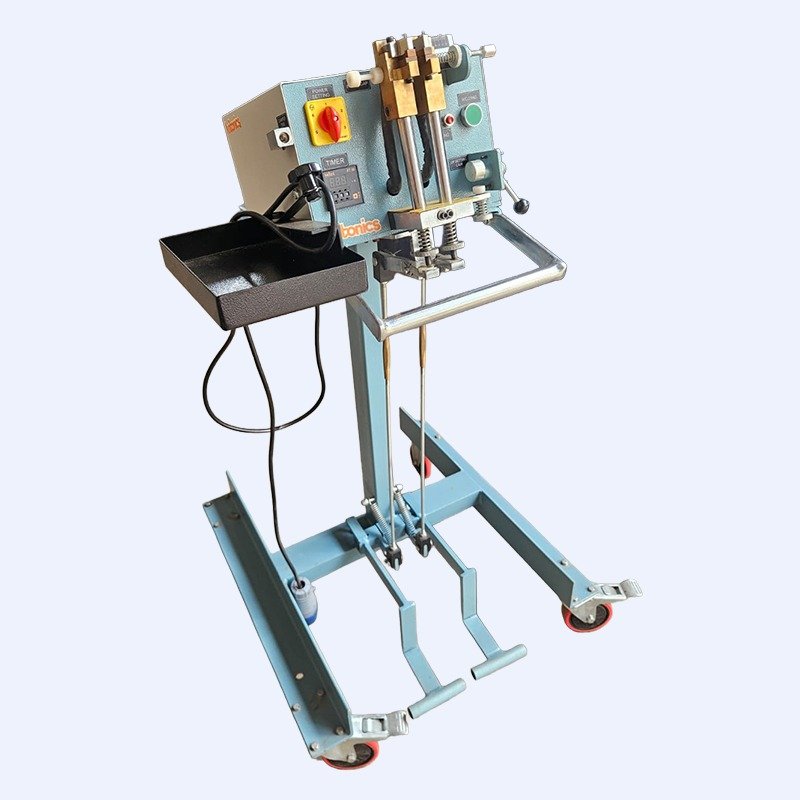

Conductor Welding Machine / Bunch Welding Machine / Stranded Wire And Wire Rope Welding Machines
KRITONICS welding machines are designed for the effective joining of stranded wires and conductor cables of 0.1 sq/mm to 250 sq/mm made of aluminium or copper using Ceramic tubes.
Easy to Operate
Upset Travel
Upset Pressure
Upset Gap
Clamp
Electrodes
Weld Current Selection
Weld Current Initiation
Weld Current Cut-Off With Timer
Product Details
Technical Data
Nominal Electrical Rating: 3 to 50 KVA
Output Current Selection Steps: 1 TO 12
Construction: Sturdy
Clamping Type: Manual, Paddle Operated
Input Supply: 220V / 415V (1 Phase)
Weight: 50 to 200 KG
| TYPE | KVA | I/P Volt. | Stranded Conductors (mm2) Copper | Stranded Conductors (mm2) Aluminium |
| KBW-01 | 3 | 230 V - 1 Phase | 0.1 - 4 | ----- |
| KBW-02 | 5 | 230 V - 1 Phase | 0.2 - 6 | 1.5 - 6 |
| KBW-03 | 10 | 415 V - 2 Phase | 0.5 - 16 | 1.5 - 16 |
| KBW-04 | 30 | 415 V - 2 Phase | 10 - 150 | 16 - 200 |
| KBW-05 | 40 | 415 V - 2 Phase | 16 - 200 | 16 - 250 |
Dimensions
Length: 600mm
Width: 700mm
Height: 1200mm
Weight: 60 to 65 kg
