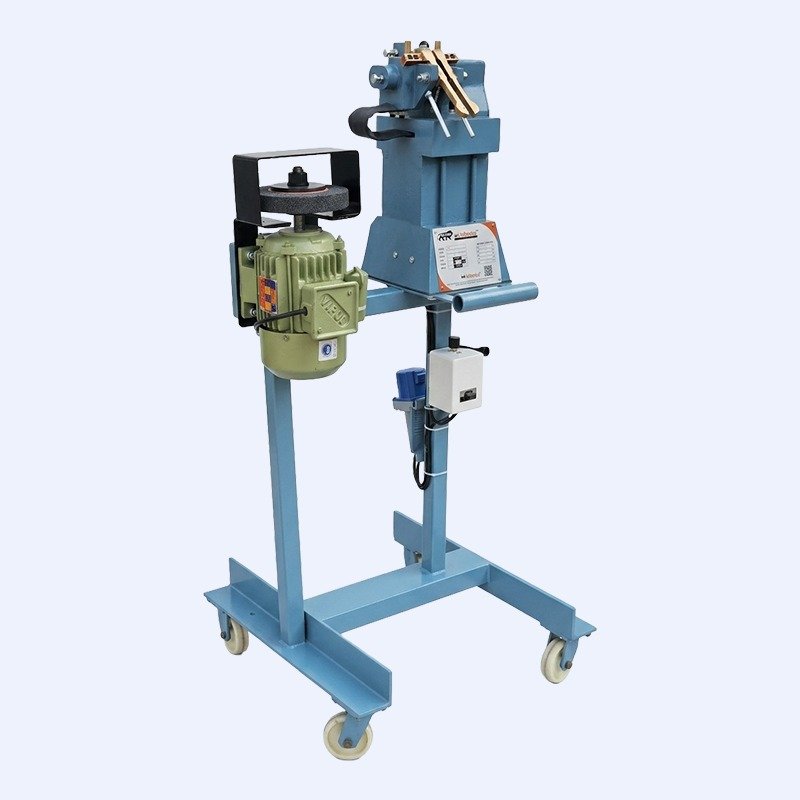

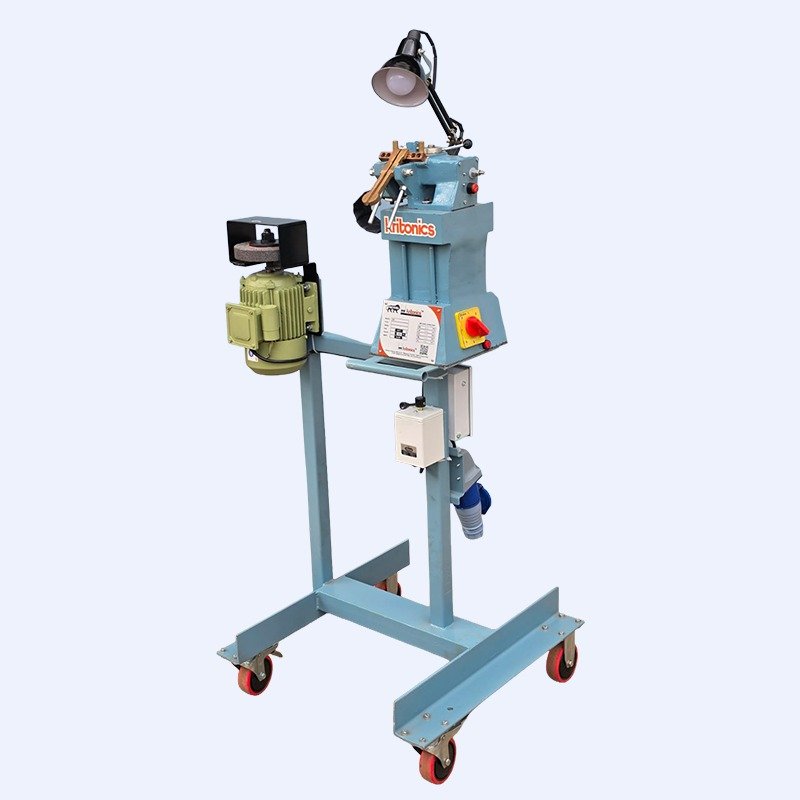

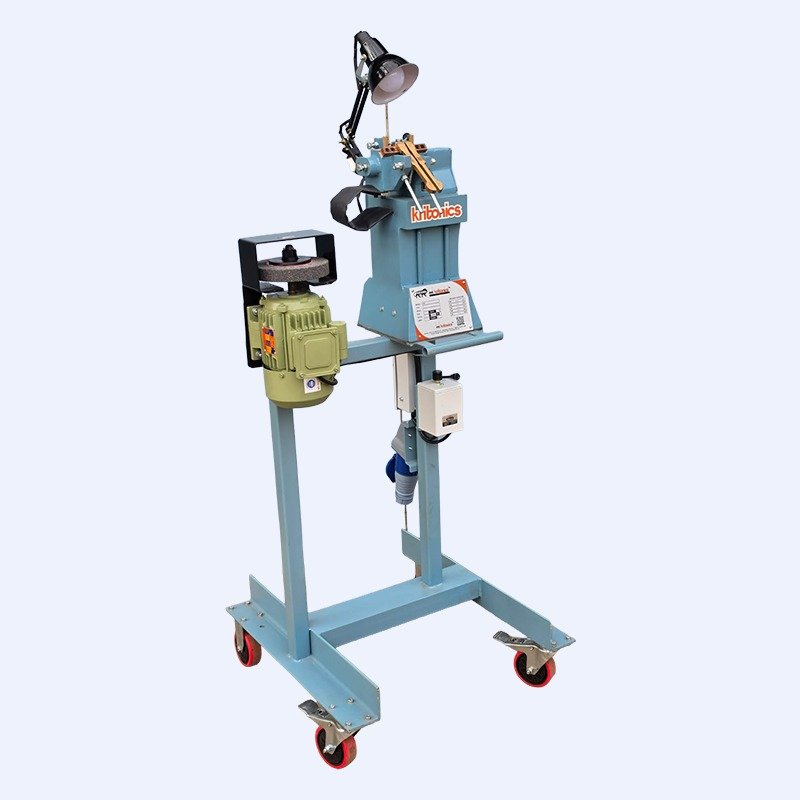

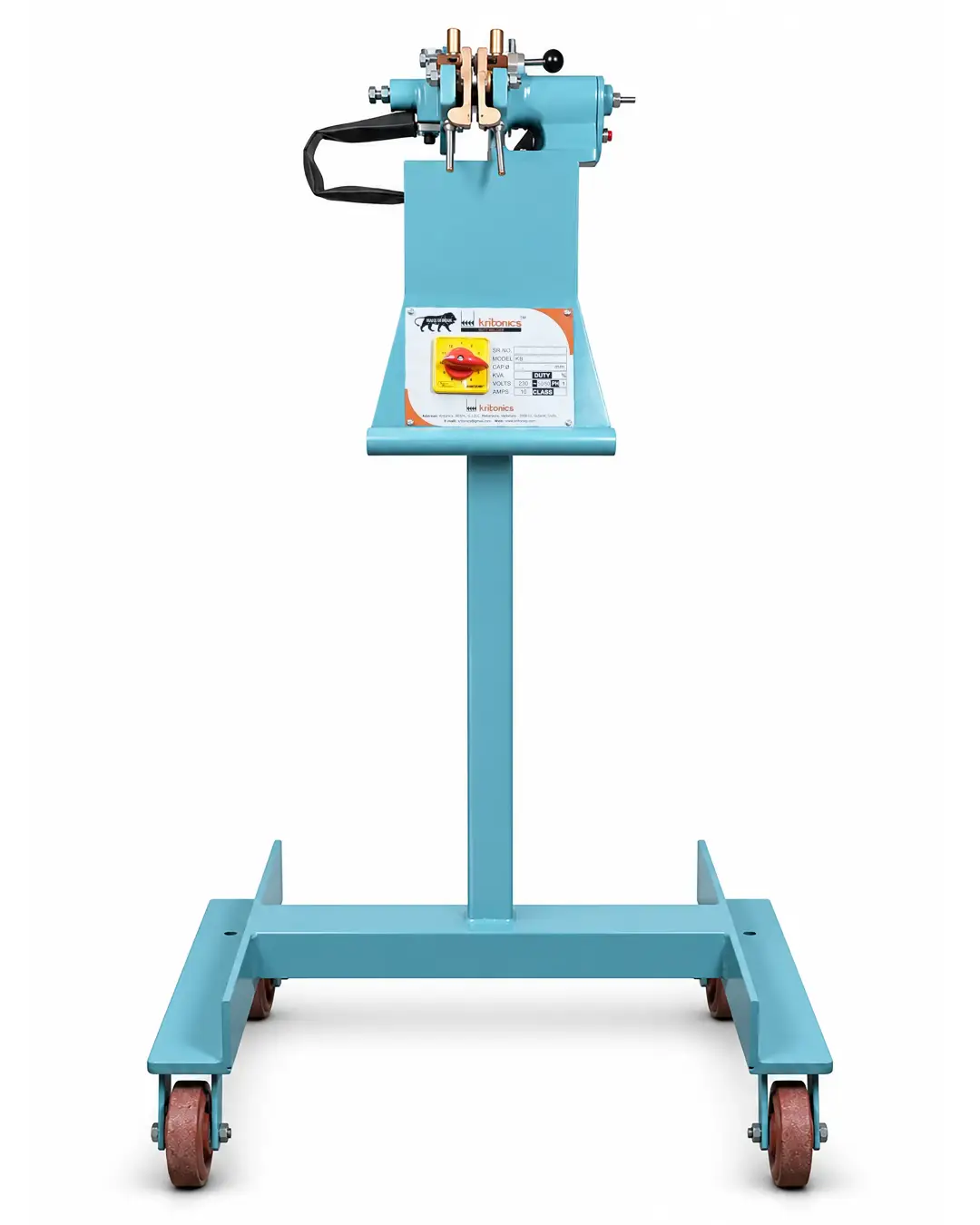

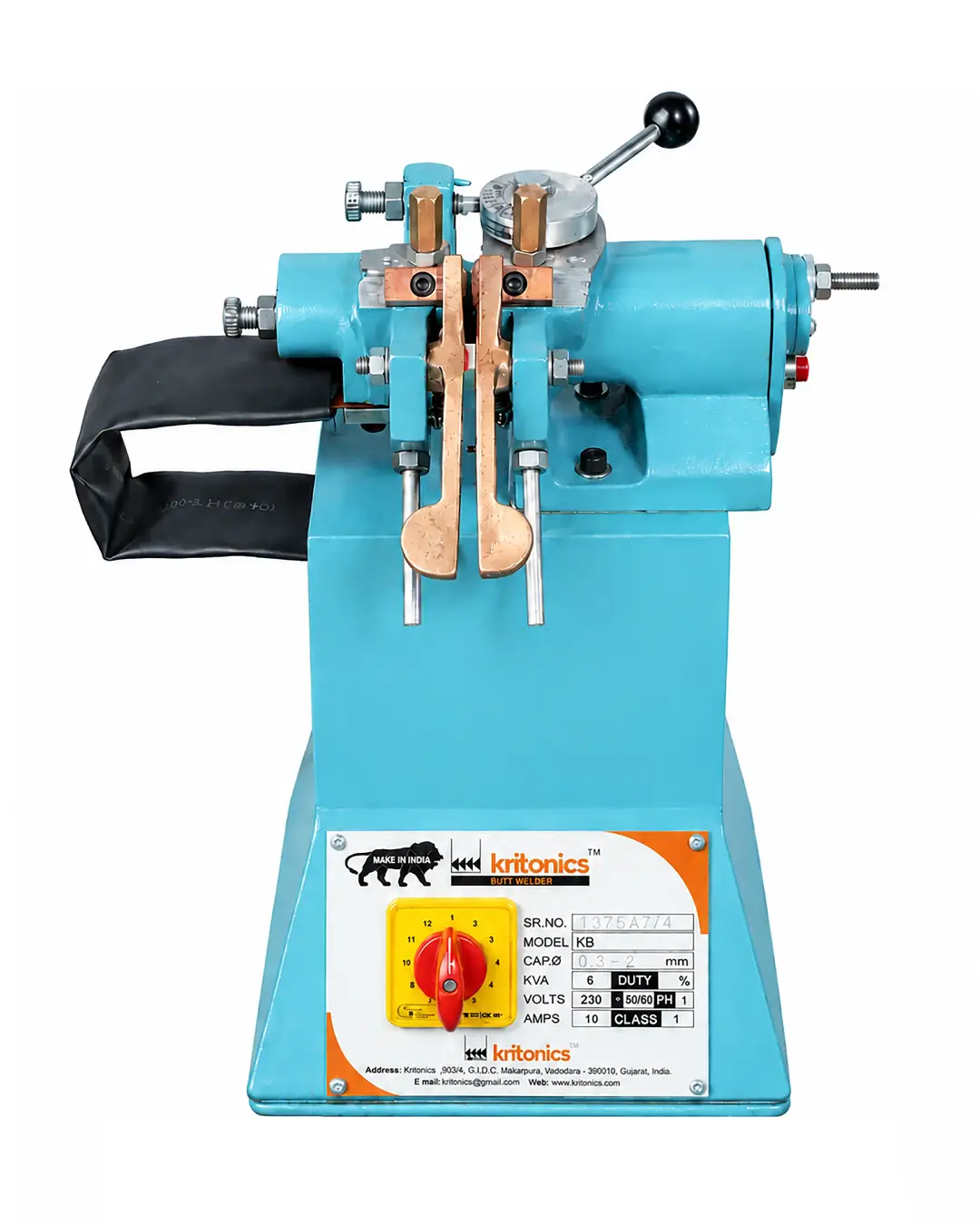

Micro Butt Welding Machine
You, being in Wire or Cable drawing industry, must ensure continuous and uninterrupted process. While drawing as well as cable or conductor manufacturing, Butt welding assures firm joint for continuing coil after coil or during breakage in the drawing process. Butt Welding Is a most modern Resistance Welding process which ensures joint strength even 25% higher than the parent metal KRITONICS Micro & Wire Butt Welders are specially designed for ferrous and non-ferrous Wire-processing industries in the manufacture of Cable and Conductors. Wire Ropes, Fine Wires, Cycle Tyre Bead Wires, Transformers etc. The automatic welding process guarantees high tensile and uniform welds withstanding subsequent drawing. KRITONICS Butt Welder-s are product of many years of research and development in the field of Resistance Welding Technology.
Compact & Elegant Design
Automatic Welding Cycle
Low Maintenance Operation
High-Precision Movement System
Energy Efficient Performance
Reliable Industrial Performance
Product Details
Technical Data
Nominal Electrical Rating : 1-5 kVA
Output Current Selection Steps : 1 to 12
Construction :sturdy
Clamping Type : Manual
Input Supply : 230V/110V
Weight :17 KG TO 25 KG
Overall Dimensions :13” X 13” X 20” (Appx.)
| Weldabilty – Diameter selection of material weldable (in mm) | |||||||||
| TYPE | KVA | SWG | MS/SS/GI | CS/HC/AS | Copper | Aluminum Brass | |||
| KB 014 | 1 | 25-12 | 0.5-2.5 | – | – | – | |||
| KB-016 | 1 | 25-17 | 0.8-2 | – | 0.5-1.5 | 0.5-2 | |||
| KB-021 | 2 | 21-10 | 0.8-3.2 | – | – | – | |||
| KB-022 | 2 | 25-10(AI) 25-14(CU) |
0.8-2.5 | – | 0.5-2.0 | 1.0-3.0 | |||
| KB-032 | 3 | 25-9(AI) 25-12(CU) |
0.8-3.0 | – | 0.5-2.5 | 1.0-3.5 | |||
| KB-033 | 3 | 22-8(AI) | 0.8-4.0 | 0.8-4.0 | – | – | |||
| KB-054 | 5 | – | 1.5-6.0 | 1.5-5.0 | 1.5-3.0 | 1.5-4.0 | |||
Operational Accessories

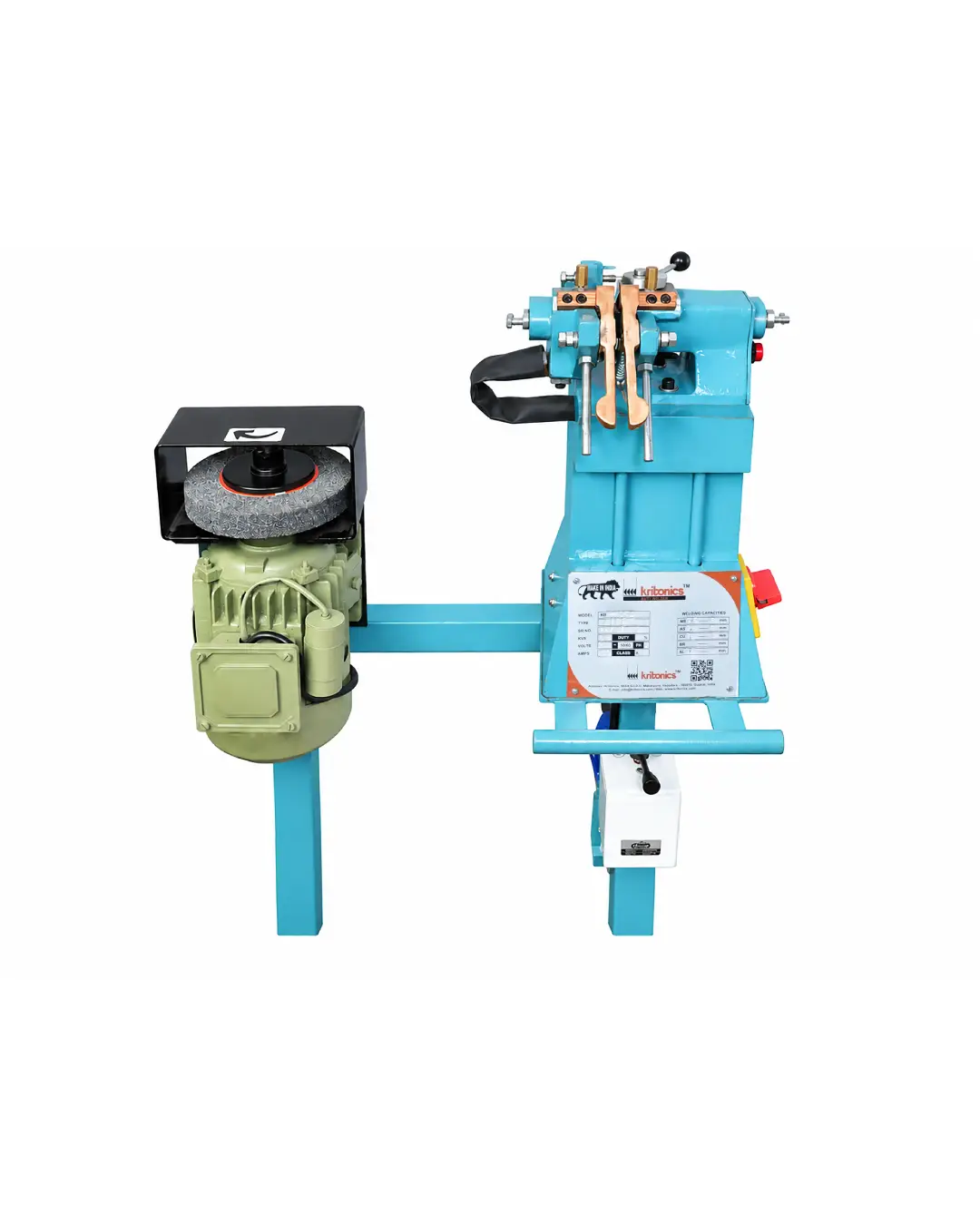

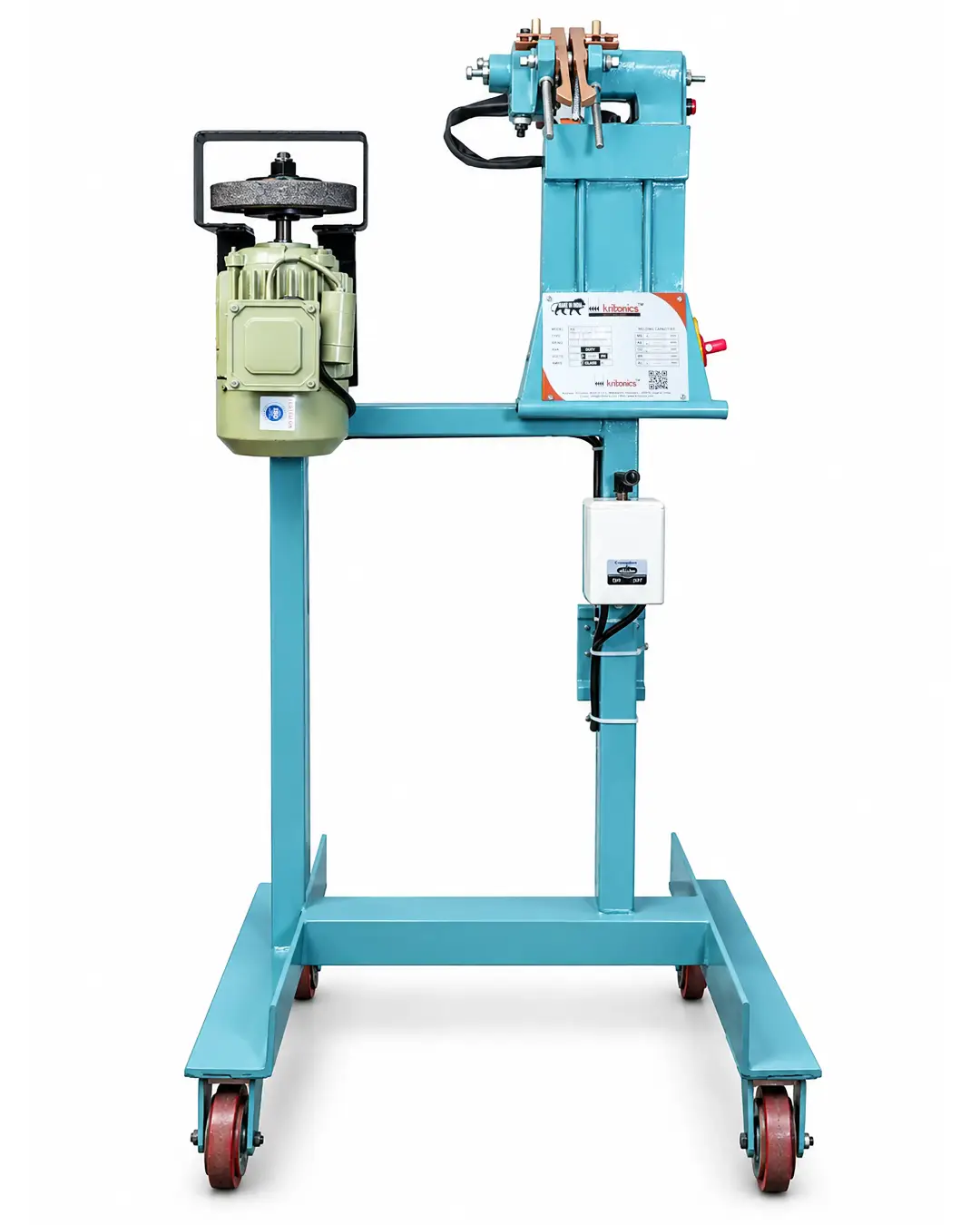

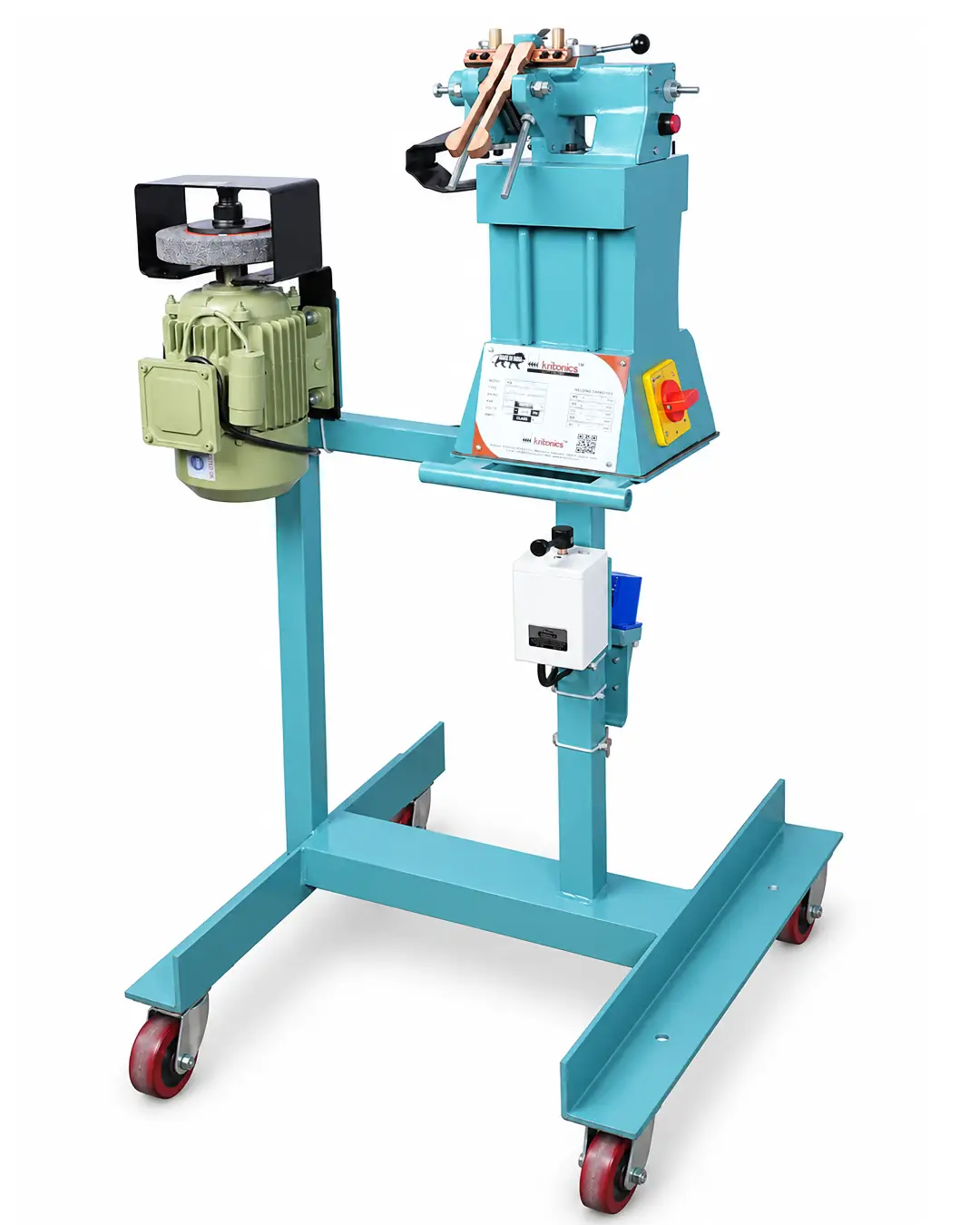

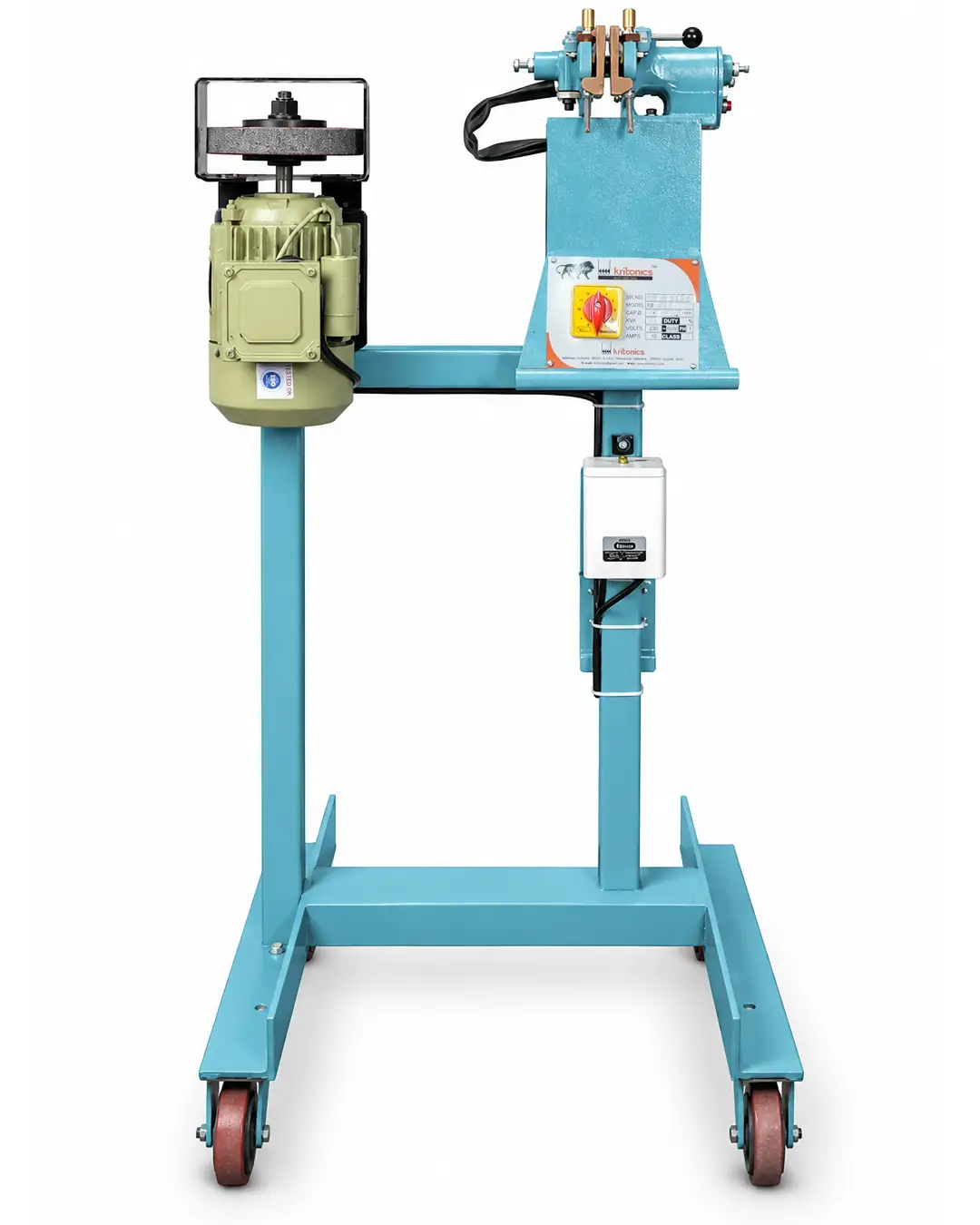

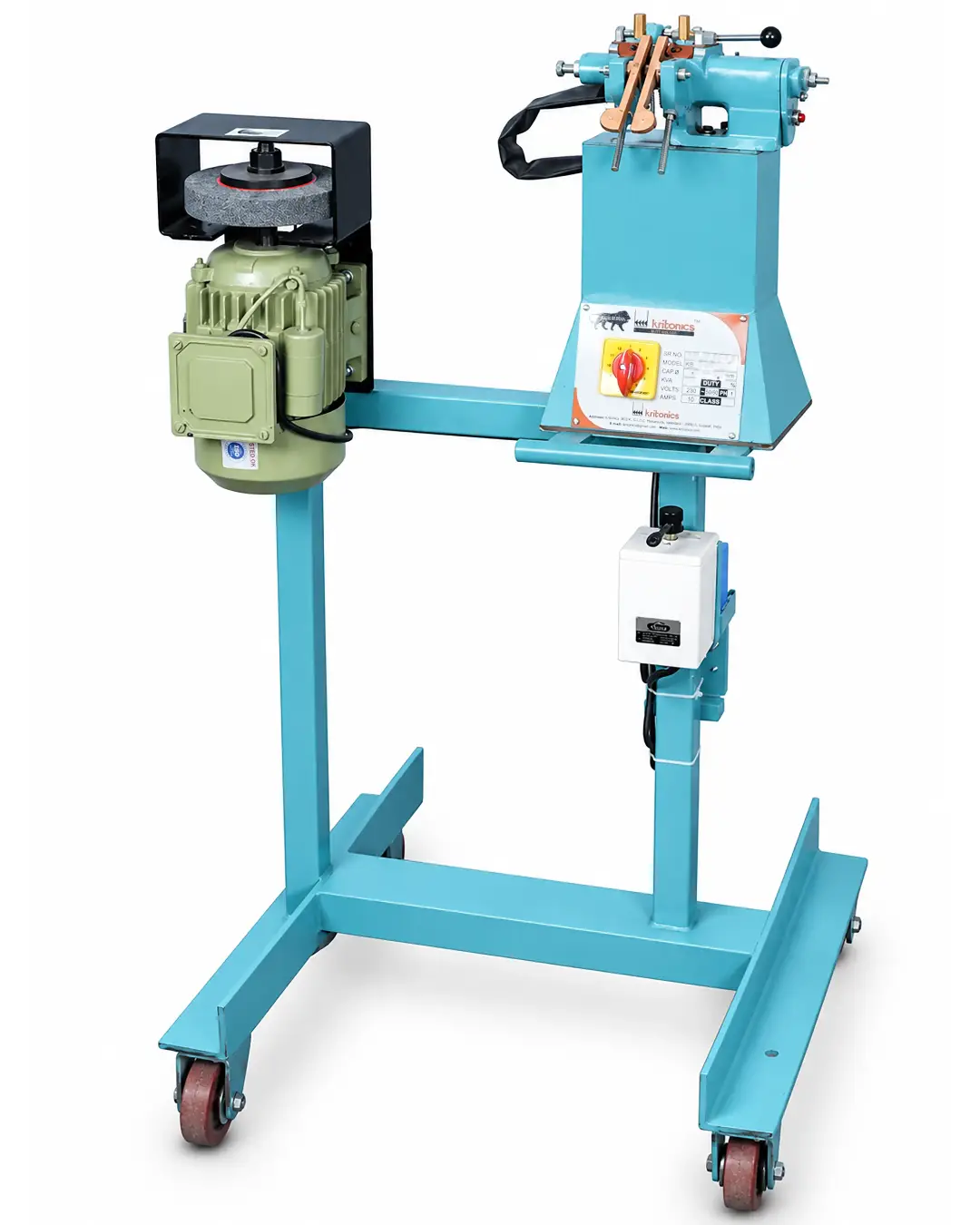

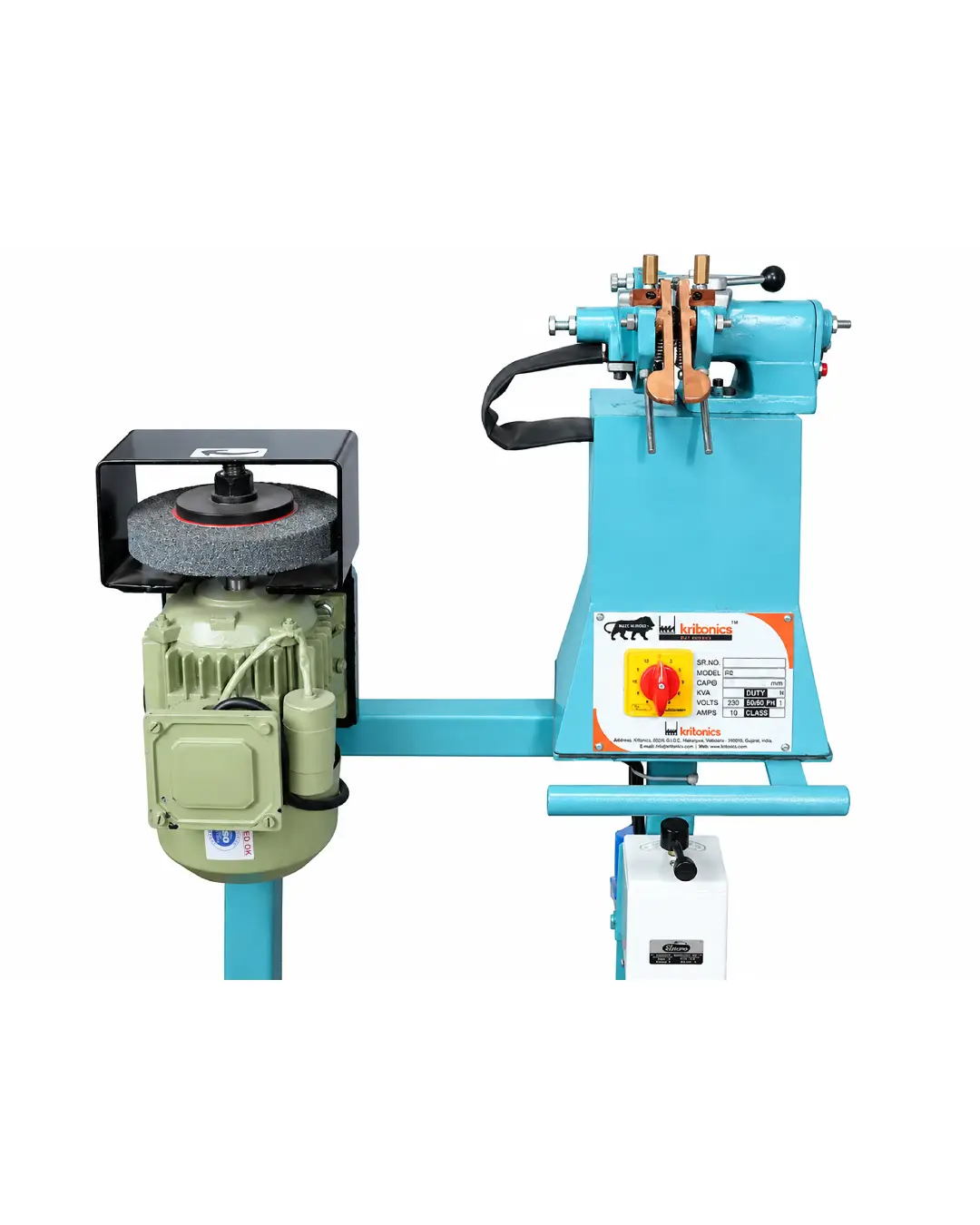

- Trolly With Grinding Attachment
- Shearing Attachment
- Magnifying Glass
- Clamping Attachment

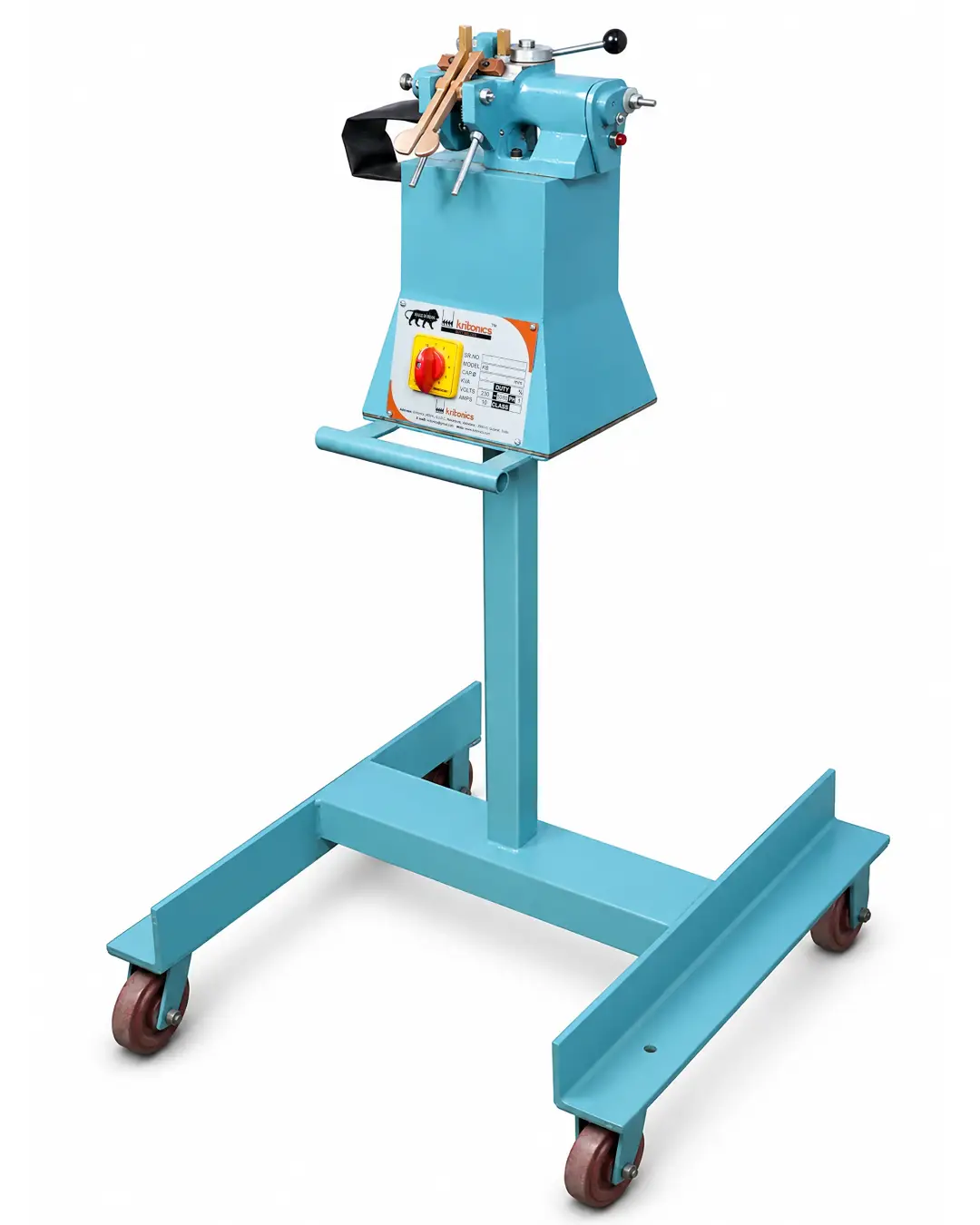

- Trolly
- Lamp
Applications
- Stranded wire & cables
- Wire
- Structural steel, coil to coil
- Tyres
- Conveyor belts
- Automotive / Mobility
- Individual & custom parts
- Ring & moulded parts, large quantities
- Snow chain manufacturing
- Strip connections
- Transformers
- Contract manufacturing
