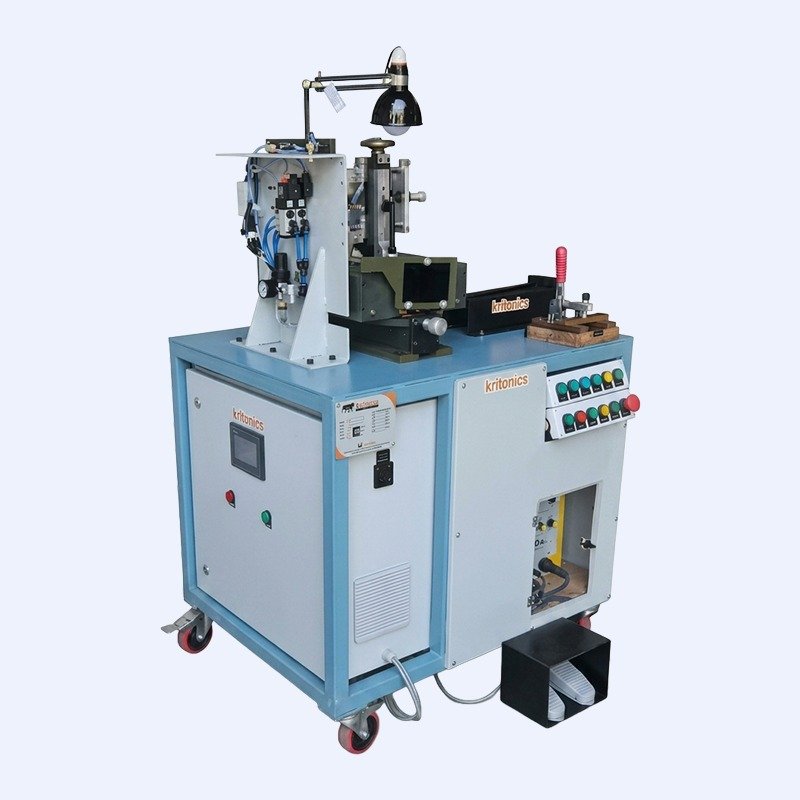

Strip - Coil Welding Machine
Majority of wires are welded on this type of medium-duty resistance butt welding machines. Elegant design, automatic upset, precise movement pattern, and foot pedal operation make this machine a definite winner over our competitors. More economy and productivity can be achieved by adding optional accessories. As a market leader, our technical expertise, and know-how of end applications deliver these cost-effective machines for long-lasting equipment life.
Elegant Design
Automatic Upset
Precise Movement Pattern
Foot Pedal Operation
Product Details
Weldability
| Type | KVA | Duty Cycle | MS/SS | Carbon Steel | Copper | Aluminum |
| KB-051 | 5 | 2% | 2-8 | – | 2-3 | 3-5 |
| KB-052 | 5 | 7.5% | 2-8 | 2-8 | – | – |
| KB-081 | 8 | 5% | 2-8 | – | – | – |
| KB-101 | 10 | 2% | 2-10 | – | – | – |
| KB-121 | 12 | 0.6% | 1-5 | – | 1-4 | 1.5-6 |
| KB-151 | 15 | 5% | 2-10 | – | – | – |
| KB-201 | 20 | 0.5% | 3-8 | – | 2.5-6 | 4-7 |
Technical Data
Nominal Electrical Rating : 5-20 kVA
Output Current Selection Steps : 6
Input Supply : 415V, 2 Phase, 50c/s
Clamping Type : Manual
Construction : Casted
Dimensions
Length: 600mm
Width: 700mm
Height: 1200mm
Weight: 60 to 65 kg
